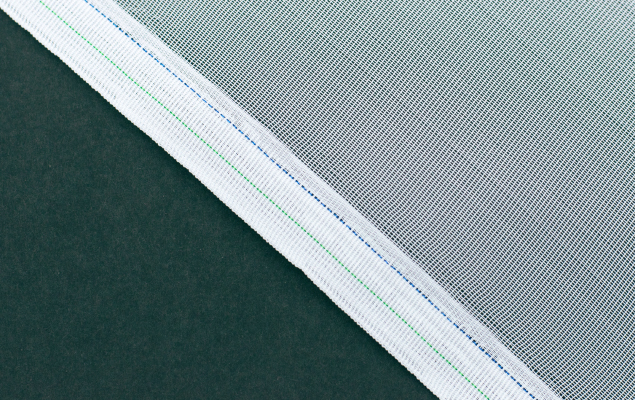

40 mesh (NW) Unit Specification
Material NA HDPE
Colour NA Clear
Shade factor % 18-25
Avg. Weight g/sq. mtr 112-120
Mesh 1 inch x 1 inch 40 x 25
Warp strength kgf 110+
Weft strength kgf 75+
Hole size mm x  mm 0.36 x 0.8
Yarn diameter mm 0.225-0.23
Yarn density Warp cm 16
Yarn density Weft cm 9.3-9.5
UV Stability KLY 700+

*All tests as per IS 16513:2016

[edgtf_button text=”Download Pdf” target=”_blank” icon_pack=”” font_weight=”” text_transform=”” plus_sign=”” link=”” background_color=”#005959″]


  1. High quality stabilizers added to provide resistance to UV rays.
  2. Anti- Sulphur and anti- Chlorine to prevent early degradation.
  3. Reinforced edges to prevent yarn displacement.
  4. Finely woven to provide uniform screening.
  5. Water and air permeable.
